Z-Class

For more than five decades, the ZIEGLER brand stands for safety at airports all over the world. Airport rescue and firefighting vehicles are considered as the top tier amongst firefighting vehicles for good reasons. Designing and producing such vehicles takes special skills and extraordinary engineering know-how. ZIEGLER offers both.

Since 1969, we have been producing practical, high-performance solutions based on constant innovation. Today, we offer an impressive product portfolio of 4×4, 6×6 and 8×8 airport rescue and firefighting vehicles – designed and produced from a single source. By continuously developing proven, successful concepts, we ensure that our Z-Class vehicles exceed the requirements of relevant NFPA or ICAO standards by far.

Our main focus is always on the practicability of all of our technical systems and components, which need to work reliable and unrestricted in case of an emergency. This is our definition of holistic security.

Key Information

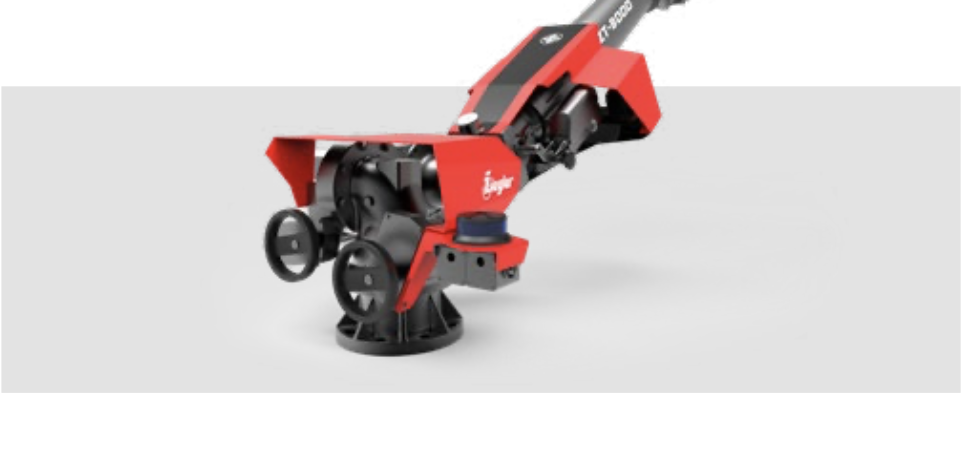

Roof turret and front turret

Proven ZIEGLER turrets complete the extinguishing system from one single source. Output rates of up to 8,000 l / min are no problem for Z-Turret, our new generation of turrets. Alternatively, the roof turret can be replaced by a Z-Attack articulated extinguishing arm and the front turret can be done lowerable.

Extinguishing agent tank

The glass fiber reinforced extinguishing agent tank holds up to 19 tons of combined extinguishing agents (water-foam). The newly designed tank is positioned at a low point in the vehicle and plays a key role in maintaining the vehicle’s low center of gravity and optimizing its driving dynamics and safety.

Extinguishing system

The heart of each vehicle is the ZIEGLER built-in pump, which has proven itself thousands of times. They are robust, extremely reliable, low-wear, designed for dirt water and therefore easy to maintain. The ZIEGLER admixing system, developed and tested for all foaming agents, is perfectly matched.

Drive technology

We selected specific components to design the drive train for the special requirements of an airport rescue and firefighting vehicle: excellent acceleration values in connection with the highest possible vehicle load. Thanks to the innovative drive concept, the pump and roll mode can be activated at any speed.

Product Features

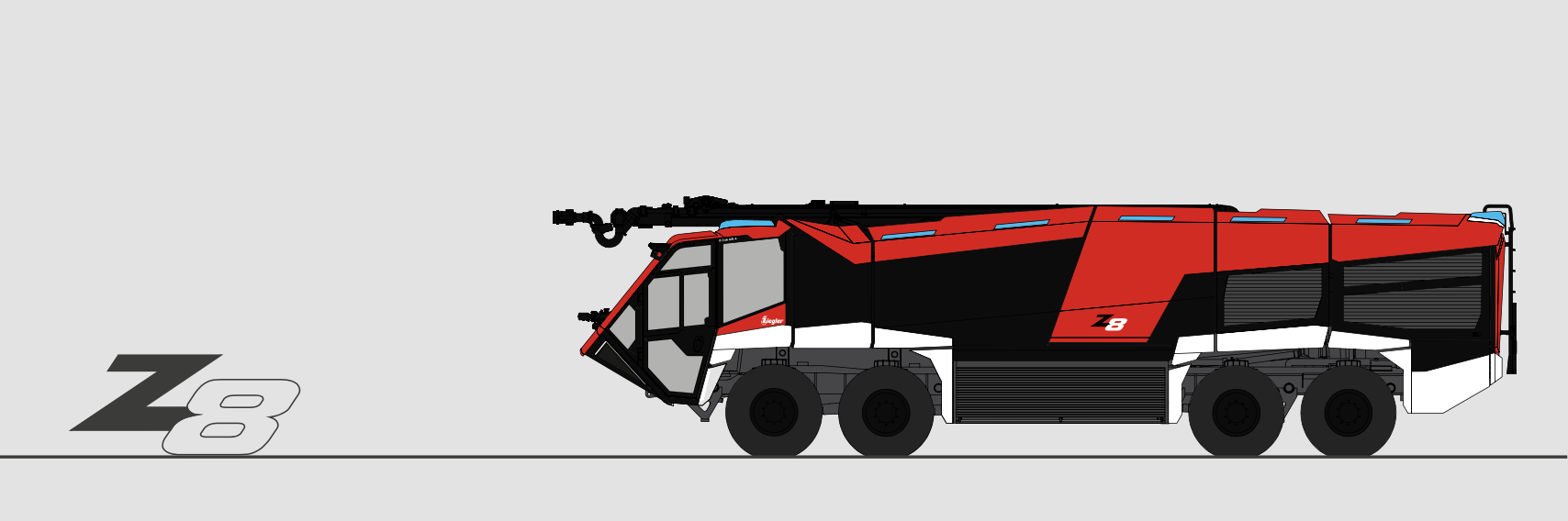

The flagship of the Z-Class, a firefighting giant proven hundreds of times over for airports
Large and powerful: Enormous extinguishing agent volume for massive firefighting operations
Fast and agile: Impressive acceleration, even off paved surfaces
Proven and reliable: ZIEGLER airport technology, user-friendly and internationally tested

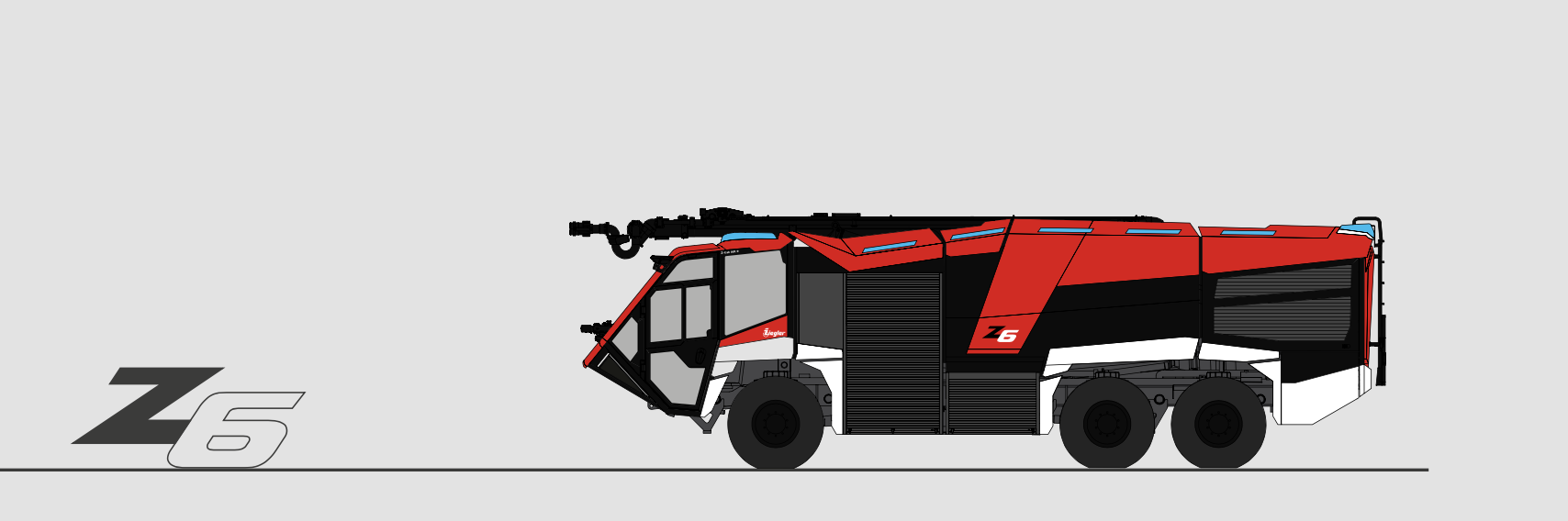

Concentrated extinguishing power for the runway
Universal and powerful: For all airport categories, considerable extinguishing agent volume
Optimally equipped: Equipment compartment volume ideal for Category 10 airports, impressive handling
Proven and reliable: ZIEGLER airfield technology with user-friendly, powerful equipment

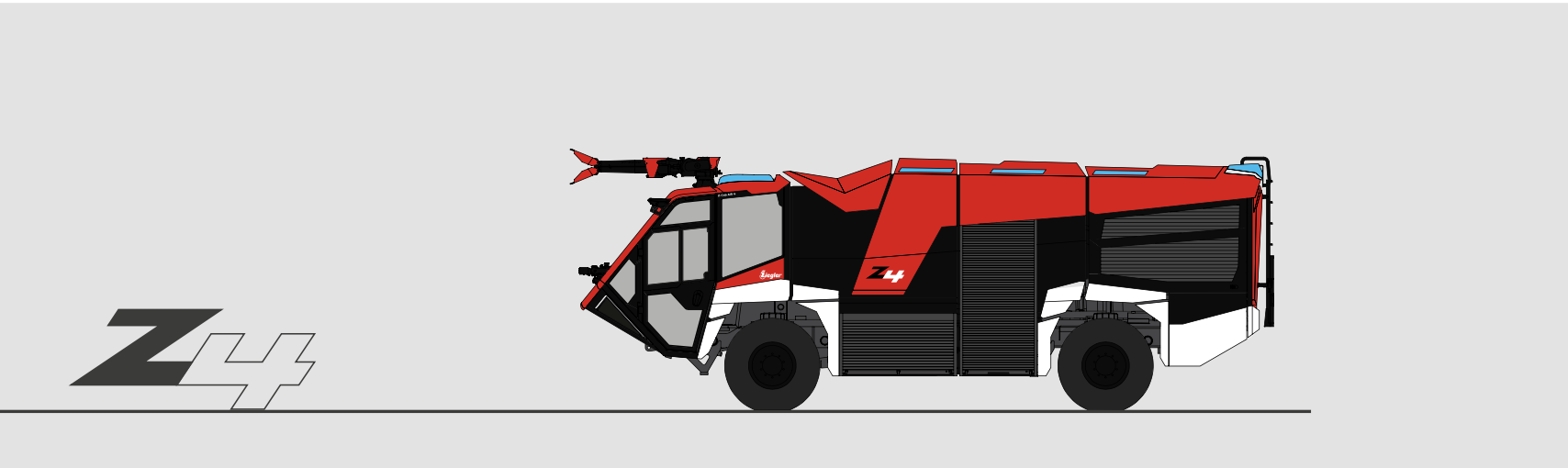

Our smallest among the big ones – fast, agile and efficient.
Compact and powerful: High extinguishing power with a compact design
Versatile and flexible: Supplementary vehicle or stand-alone unit, adaptable to airport conditions
Proven and safe: ZIEGLER airport technology since 1969

Optional Configuration
