High-Speed Operation: Engineered for rapid storage and retrieval cycles, maximizing throughput.
Pinpoint Accuracy: Ensures precise positioning for reliable, damage-free load handling.
High-Density Storage: Utilizes the full vertical height of the facility to optimize storage capacity.
Products

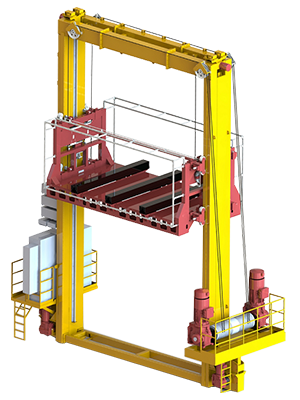

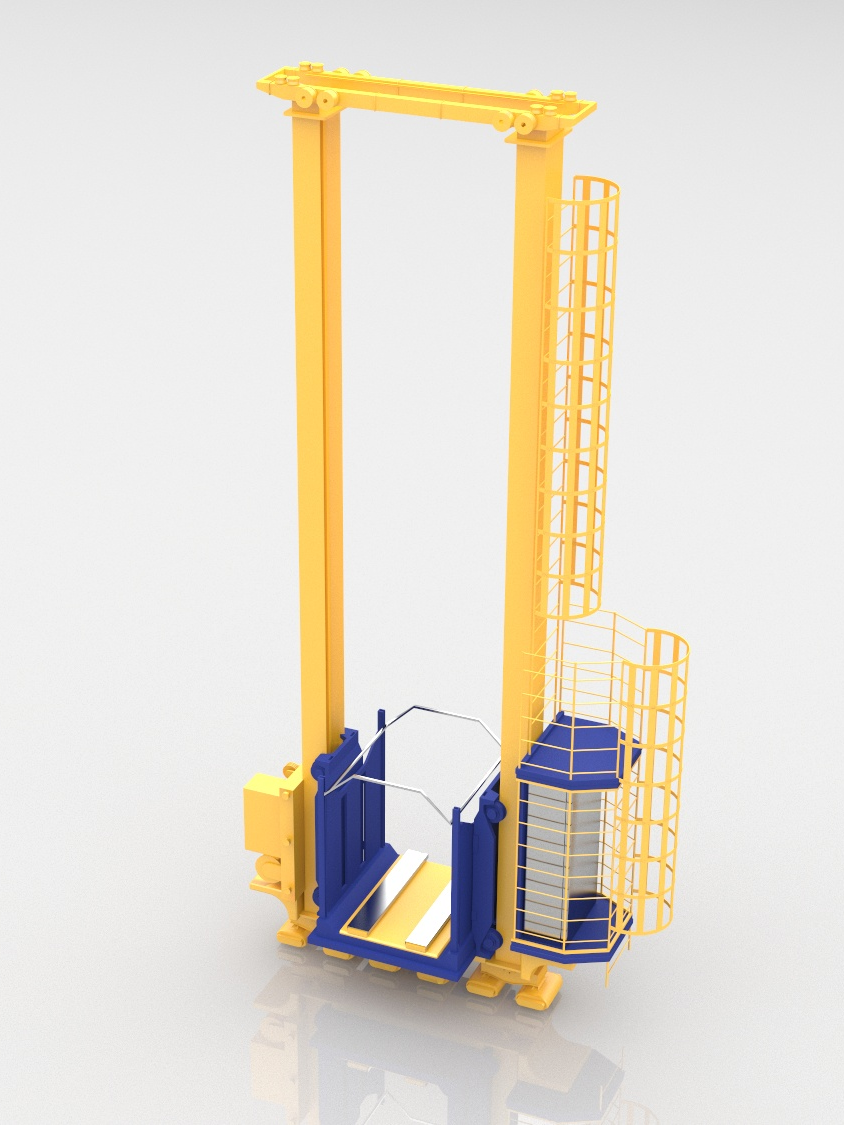

Unitload-Double Column-Heavy Duty
Maximum Load: 30000kg Height: ≤30m Travel Speed: ≤180m/min Acceleratione: ≤0.35m/s2 Lift Speed: ≤40m/min Lift Acceleration: ≤0.7m/s2 Product Features: Large Tube/Box Beam Columns with Four Rails Robust Platform with Balanced Guides & Safety Clamps Dual-Motor Hoist for Heavy Loads (20T+) Crane-Specific Rails & High-Safety Drive Optional Cabin & Auxiliary Brakes

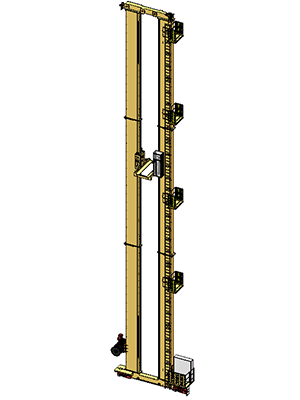

Unitload-Double Column-Super high
Maximum Load: 3000kg Height: 25-40m Travel Speed: ≤240m/min Acceleratione: ≤0.45m/s2 Lift Speed: ≤90m/min Lift Acceleration: ≤0.7m/s2 Product Features: CE, UL & TUV Certified Rigid Columns with Four Guide Rails & Low-CG Design Low-Positioned Hoist & Balanced Cable Structure High-Performance Drive with Real-Time Anti-Sway Customizable (e.g., Cabin, Single/Multi-Fork Retrieval)

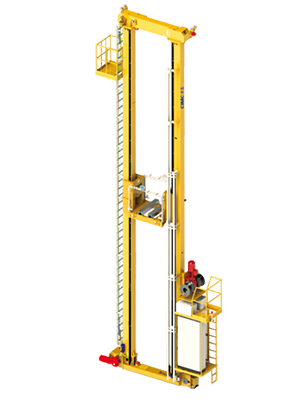

Unitload-Double Column-Standard
Maximum Load: 3000kg Height: 15-28m Travel Speed: ≤240m/min Acceleratione: ≤0.5m/s2 Lift Speed: ≤60m/min Lift Acceleration: ≤0.7m/s2 Product Features: CE & UL Certified with High Safety Margins Standard Square Tube Columns with Four Guide Rails Modular Platform & Base for Reduced Clearance Accessible Hoist Platform & Precision VFD Drive Customizable (e.g., Cabin, Track Switch, Armored Protection)

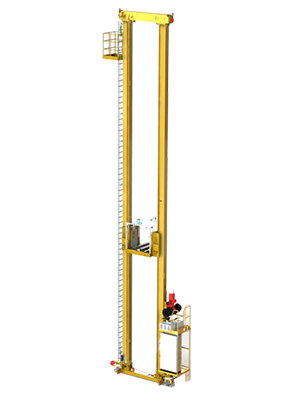

Unitload-Double Column-Economy
Maximum Load: 1500kg Height: ≤22m Travel Speed: ≤160m/min Acceleratione: ≤0.45m/s2 Lift Speed: ≤40m/min Lift Acceleration: ≤0.7m/s2 Product Features: Standard Square Tube Columns with Dual Guide Rails Lightweight Load Platform Easy Installation & Maintenance VFD for Smooth Operation & Accurate Positioning High Value for Light-Duty Applications

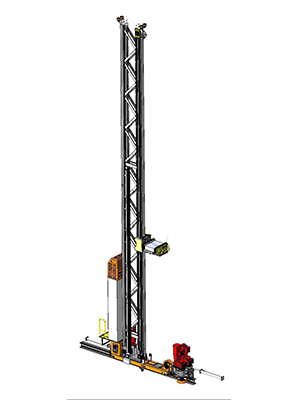

Miniload-single Column-High Speed
Maximum Load: 50kg Height: ≤18m Travel Speed: ≤300m/min Acceleratione: ≤3m/s2 Lift Speed: ≤180m/min Lift Acceleration: ≤3m/s2 Product Features: Full Aluminum Alloy Columns Lightweight Load Platform Belt Drive & Clamp-Type Transfer High-Dynamics Servo Control

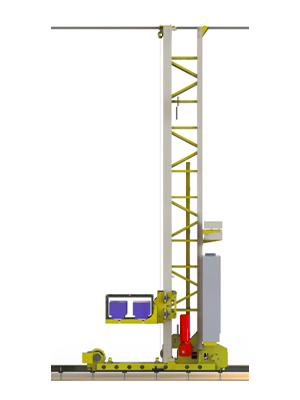

Miniload-single Column-Standard
Maximum Load: 100kg Height: ≤24m Travel Speed: ≤240m/min Acceleratione: ≤1m/s2 Lift Speed: ≤90m/min Lift Acceleration: ≤1m/s2 Product Features: Square Tube or Aluminum Alloy Columns Lightweight Load Platform Flexible Drive & Transfer Options (Belt/Cable, Plate/Clamp) VFD or Servo Control for Rapid Response

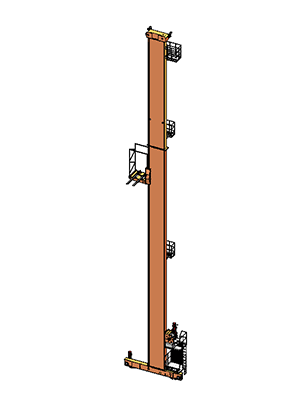

Unitload-single Column-High Efficiency
Maximum Load: 2000kg Height: 27-40m Travel Speed: ≤240m/min Acceleratione: ≤0.45m/s2 Lift Speed: ≤60m/min Lift Acceleration: ≤0.7m/s2 Product Features: CE & UL Certified Rigid Double-Section Tube/Box Beam Columns Stable Low-CG Design & Accessible Hoist High-Precision Drive with Real-Time Anti-Sway Modular & Customizable (e.g., Cabin, Single Fork)

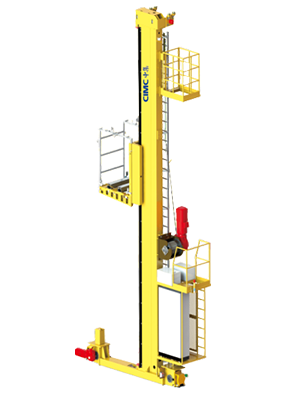

Unitload-single Column-Standard
Maximum Load: 1500kg Height: ≤20m Travel Speed: ≤240m/min Acceleratione: ≤0.45m/s2 Lift Speed: ≤40m/min Lift Acceleration: ≤0.7m/s2 Product Features: Standard Square Tube Columns Lightweight Construction Easy Installation & Maintenance Smooth & Precise VFD Operation Ideal for Light-Duty Scenarios

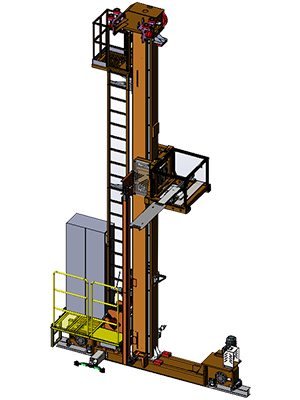

Unitload-single Column-Economy
Maximum Load: 1500kg Height: ≤18m Travel Speed: ≤160m/min Acceleration: ≤0.45m/s2 Lift Speed: ≤40m/min Lift Acceleration: ≤0.7m/s2 Product Features: Single/Double-Section Square Tube Columns Lightweight Platform & Base for Reduced Clearance Accessible Hoist Platform for Easy Maintenance Dual Closed-Loop VFD for Precision Control Modular Design for Rapid Deployment
